Triple Axis Accelerometer MMA7361

Note: Gravity: Triple Axis Accelerometer - MMA7361 (±1.5g/±6g) is discontinued now.

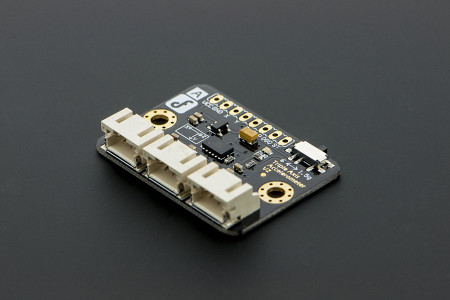

The MMA7361 from Freescale is a very nice IMU sensor with easy analog interface. The MMA7361 Arduino is a 3.3V part and outputs an analog voltage for each of the three outputs. This voltage is in ratio to the measured acceleration and to the supply voltage (ratiometric). It has selectable sensitivity by dip switch.  You will need some extra hardware to convert this analog signal to a usable digital one.  The Arduino is really good option for it.  This break board is especially designed for Arduino which has 3 JST connector that can be easily plug into our IO/Sensor expansion board.

• Standard assembling structure (Times-of-5mm Center distance between two 3mm mounting holes)
• Easily recognitive interfaces of sensors ("A" for analog and "D" for digital)
• Icons to simplely illustrate sensor function
• High quality connector
• Immersion gold surface

• Measure the acceleration information for your robot or other devices
• Using for slope alarm or other kinds of alarm such as shock

• Voltage:3.3-8V
• Selectable sensitivity:±1.5g/6g
• Low power:500?A @ measurement mode?3?A @standby ?
• High sensivity: 800 mV/g @ 1.5g?
• Interface:Analog Output
• Low pass filter

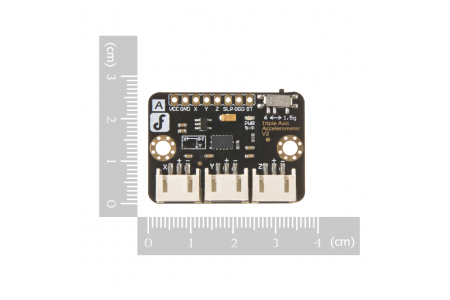

• Size:26*37mm(1.02*1.47")
• Weight: 15 gram

• Wiki (Triple Axis Accelerometer MMA7361)
• MMA7361 Schematics

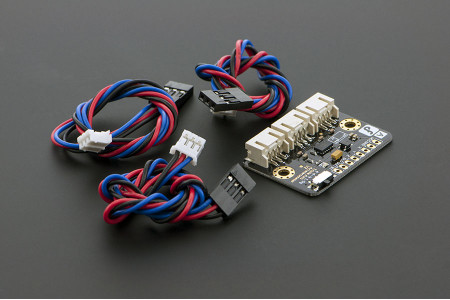

• Gravity: Triple Axis Accelerometer - MMA7361 (±1.5g/±6g)  x1
• Analog Cable  x3
