VL53L1X Time-of-Flight Distance Sensor Carrier with Voltage Regu

Overview

The VL53L1X from ST Microelectronics is a long-distance ranging time-of-flight (TOF) sensor integrated into a compact module. This board is a carrier for the VL53L1X, so we recommend careful reading of the VL53L1X datasheet (1MB pdf) before using this product.

The VL53L1X is effectively a tiny, self-contained lidar system featuring an integrated 940 nm Class 1 laser, which is invisible and eye-safe. Unlike conventional IR sensors that use the intensity of reflected light to estimate the distance to an object, the VL53L1X uses ST�s FlightSense technology to precisely measure how long it takes for emitted pulses of infrared laser light to reach the nearest object and be reflected back to a detector. This approach ensures absolute distance measurements independent of ambient lighting conditions and target characteristics (e.g. color, shape, texture, and reflectivity), though these external conditions do affect the maximum range of the sensor, as do the sensor configuration settings.

Under favorable conditions, such as low ambient light with a high-reflectivity target, the sensor can report distances up to 4 m (13 ft) with 1 mm resolution. See the datasheet for more information on how various external conditions and sensor configurations affect things like maximum range, repeatability, and ranging error. The minimum ranging distance is 4 cm; inside of this range, the sensor will still detect a target, but the measurement will not be accurate. Ranging measurements are available through the sensor’s I�C (TWI) interface, which is also used to configure sensor settings, and the sensor provides two additional pins: a shutdown input and an interrupt output.

The VL53L1X offers three distance modes: short, medium, and long. Long distance mode allows the longest possible ranging distance of 4 m, but the maximum range is significantly affected by ambient light. Short distance mode is mostly immune to ambient light, but the maximum ranging distance is typically limited to 1.3 m (4.4 ft). The maximum sampling rate in short distance mode is 50 Hz while the maximum sampling rate for medium and long distance modes is 30 Hz. Performance can be improved in all modes by using lower sampling rates and longer timing budgets (as can be seen in the figure above).

For advanced applications, the VL53L1X supports configurable thresholds that can be used to trigger interrupts when a target is detected below a certain distance, beyond a certain distance, outside of a range, or within a range. It also supports an alternate detection mode that generates an interrupt when no target is present. Additionally, unlike its predecessors, the VL53L1X supports a configurable region of interest (ROI) within its full 16�16 sensing array, allowing you to reduce the field of view (FoV). With all 265 detection elements enabled, the FoV is 27�. An “Autonomous Low Power” mode that is specially tuned for advanced presence detection is available. This mode allows for significant system power saving by switching off or waking up the host automatically when a human or object is detected within the configured distance thresholds in the region of interest.

The VL53L1X is a great IC, but its small, leadless, LGA package makes it difficult for the typical student or hobbyist to use. It also operates at a recommended voltage of 2.8 V, which can make interfacing difficult for microcontrollers operating at 3.3 V or 5 V. Our breakout board addresses these issues, making it easier to get started using the sensor, while keeping the overall size as small as possible.

The carrier board includes a low-dropout linear voltage regulator that provides the 2.8 V required by the VL53L1X and allows the sensor to be powered from a 2.6 V to 5.5 V supply. The regulator output is available on the VDD pin and can supply around 100 mA to external devices. The breakout board also includes a circuit that shifts the I�C clock and data lines to the same logic voltage level as the supplied VIN, making it simple to interface the board with 3.3 V or 5 V systems, and the board’s 0.1? pin spacing makes it easy to use with standard solderless breadboards and 0.1? perfboards. The board ships fully populated with its SMD components, including the VL53L1X, as shown in the product picture.

ST’s part number for the sensor on this board is VL53L1CXV0FY/1, but they refer to it everywhere on their website and in the datasheet as the VL53L1X (without the C), and this is how we are referring to it in our documentation as well.

Alternative versions

The VL53L0X, VL53L1X, VL53L3CX, and VL53L4CD carriers all use the same PCB (labeled irs11a) and look similar (although the VL53L1X�s gold-colored windows make it easy to distinguish from the others):

VL53L0X Time-of-Flight Distance Sensor Carrier.

VL53L1X Time-of-Flight Distance Sensor Carrier.

VL53L3CX Time-of-Flight Distance Sensor Carrier.

VL53L4CD Time-of-Flight Distance Sensor Carrier.

You can refer to the pictures above to help differentiate them, and you might also consider marking your boards if you have multiple types of these sensors.

For other similar sensors, see the comparison section at the bottom of this page.

Features and specifications

• Dimensions: 0.5? � 0.7? � 0.085? (13 mm � 18 mm � 2 mm)
• Weight without header pins: 0.5 g (0.02 oz)
• Operating voltage: 2.6 V to 5.5 V
• Typical active-ranging supply current: 20 mA
  • Varies with configuration, target, and environment; peak current can reach 40 mA
• Ultra-Low power (ULP) driver software enables sensor to perform basic proximity detection with reduced current consumption (<100 ?A)
• Fast and accurate ranging with three distance mode options:
  • Short: up to ~130 cm, 50 Hz max sampling rate; this mode is the most immune to interference from ambient light
  • Medium: up to ~300 cm in the dark, 30 Hz max sampling rate
  • Long: up to 400 cm in the dark, 30 Hz max sampling rate
• Minimum range: 4 cm (objects under this range are detected, but measurements are not accurate)
• Emitter: 940 nm invisible Class 1 VCSEL (vertical cavity surface-emitting laser) – eye-safe
• Detector: 16�16 SPAD (single photon avalanche diode) receiving array with integrated lens
  • Typical full field of view (FoV): 27�
  • Programmable region of interest (ROI) size on the receiving array, allowing the sensor FoV to be reduced
  • Programmable ROI position on the receiving array, allowing multizone operation control from the host
• Configurable detection interrupt thresholds for implementing autonomous low-power presence detection:
  • target closer than threshold
  • target farther than threshold
  • target within distance window
  • target outside of distance window
  • no target
• Output format (I�C): 16-bit distance reading (in millimeters)

Included components

A 1�7 strip of 0.1? header pins and a 1�7 strip of 0.1? right-angle header pins are included, as shown in the picture below. You can solder the header strip of your choice to the board for use with custom cables or solderless breadboards, or you can solder wires directly to the board itself for more compact installations.

VL53L1X Time-of-Flight Distance Sensor Carrier with included header pins.

VL53L1X Time-of-Flight Distance Sensor Carrier in a breadboard.

The board has two mounting holes spaced 0.5? apart that work with #2 and M2 screws (not included).

Using the VL53L1X

Important note: This product might ship with a protective liner covering the sensor IC. The liner must be removed for proper sensing performance.

Connections

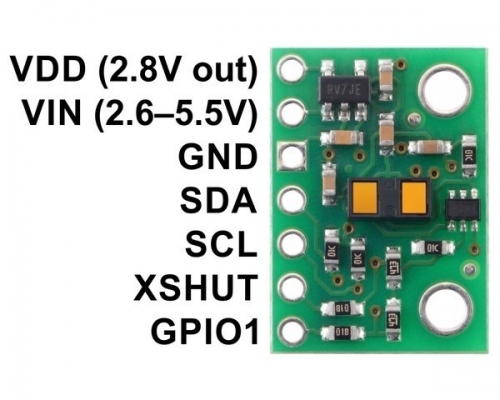

At least four connections are necessary to use the VL53L1X board: VIN, GND, SCL, and SDA. The VIN pin should be connected to a 2.8 V to 5.5 V source, and GND should be connected to 0 volts. An on-board linear voltage regulator converts VIN to a 2.8 V supply, which can be accessed via the VDD pin, for the VL53L1X IC. Supply voltages between 2.6 V and 3.5 V can also be connected to VDD (with VIN left disconnected) to bypass the regulator and power the board directly.

The I�C pins, SCL and SDA, are connected to built-in level-shifters that make them safe to use at voltages above VDD; they should be connected to an I�C bus operating at the same logic level as VIN (or VDD, if powering the board through VDD).

The XSHUT pin is an input and the GPIO1 pin is an open-drain output; both pins are pulled up to VDD by the board. They are not connected to level-shifters on the board and are not 5V-tolerant, but they are usable as-is with many 3.3 V and 5 V microcontrollers: the microcontroller can read the GPIO1 output as long as its logic high threshold is below VDD, and the microcontroller can alternate its own output between low and high-impedance states to drive the XSHUT pin. Alternatively, our 4-channel bidirectional logic level shifter can be used externally with those pins.

Schematic diagram

The above schematic shows the additional components the carrier board incorporates to make the VL53L1 easier to use, including the voltage regulator that allows the board to be powered from a 2.6 V to 5.5 V supply and the level-shifter circuit that allows for I�C communication at the same logic voltage level as VIN. This schematic is also available as a downloadable PDF (96k pdf).

I�C communication

The VL53L1X can be configured and its distance readings can be queried through the I�C bus. Level shifters on the I�C clock (SCL) and data (SDA) lines enable I�C communication with microcontrollers operating at the same voltage as VIN (2.6 V to 5.5 V). A detailed explanation of the I�C interface on the VL53L1X can be found in its datasheet (1MB pdf), and more detailed information about I�C in general can be found in NXP’s I�C-bus specification (1MB pdf).

The sensor’s 7-bit slave address defaults to 0101001b on power-up. It can be changed to any other value by writing one of the device configuration registers, but the new address only applies until the sensor is reset or powered off. ST provides an application note (196k pdf) that describes how to use multiple VL53L0X sensors on the same I�C bus by individually bringing each sensor out of reset and assigning it a unique address, and the approach can be easily adapted to apply to the VL53L1X instead.

The I�C interface on the VL53L1X is compliant with the I�C fast mode (400 kHz) standard. In our tests of the board, we were able to communicate with the chip at clock frequencies up to 400 kHz; higher frequencies might work but were not tested.

Sensor configuration and control

In contrast with the information available for many other devices, ST has not publicly released a register map and descriptions or other documentation about configuring and controlling the VL53L1X. Instead, communication with the sensor is intended to be done through ST’s VL53L1X API (STSW-IMG007), a set of C functions that take care of the low-level interfacing. To use the VL53L1X, you can customize the API to run on a host platform of your choice using the information in the API documentation. Alternatively, it is possible to use the API source code as a guide for your own implementation.

ST also provides an alternative VL53L1X ultra-low power (ULP) API (STSW-IMG032), which configures the sensor as a basic proximity detector with very low current consumption (less than 100 ?A in some cases). In this mode, the sensor does not output distance and other data as usual; it simply raises an interrupt when a target is detected. The ULP and standard drivers can be used together to make the VL53L1X act as a low-power proximity detector, then turn into an accurate ranging sensor once it sees a target.

Sample code

We have written a basic Arduino library for the VL53L1X, which can be used as an alternative to ST’s official API for interfacing this sensor with an Arduino or Arduino-compatible controller. The library makes it simple to configure the VL53L1X and read the distance data through I�C. It also includes example sketches that show you how to use the library.

We also have an implementation of ST’s VL53L1X API for Arduino available, including an example sketch. Compared to our library, the API has a more complicated interface and uses more storage and memory, but it offers some advanced functionality that our library does not provide and has more robust error checking. Consider using the API for advanced applications, especially when storage and memory are less of an issue.

Pololu’s family of carriers for ST time-of-flight distance sensors

We make pin-compatible carriers/breakout boards for several different ST time-of-flight (ToF) ranging sensors, as shown in the table below. They all function as tiny lidar systems featuring an integrated 940 nm Class 1 (i.e. invisible and eye-safe) laser, and they are all based on the same FlightSense technology, which precisely measures how long it takes for emitted pulses of infrared laser light to reach the objects and be reflected back to a detector. This approach ensures absolute distance measurements independent of ambient lighting conditions and target characteristics (e.g. color, shape, texture, and reflectivity), though these external conditions do affect the maximum range of the sensor. These sensors are all capable of 1 mm resolution, with some limitations on some versions.

	VL6180X carrier	VL53L4CD carrier	VL53L0X carrier	VL53L1X carrier	VL53L3CX carrier	VL53L5CX carrier	VL53L7CX carrier	VL53L8CX carrier
Maximum range:(1)	60 cm	120 cm	200 cm	400 cm	500 cm	400 cm	350 cm	400 cm
Minimum range:	~10 mm	1 mm	~30 mm	40 mm	10 mm	20 mm
Field of view:	25�	18�	25�	15� to 27� diagonal, program­mable	25�	65� diagonal, up to 8�8 zones	90� diagonal, up to 8�8 zones	65� diagonal, up to 8�8 zones
Other features:	ambient light sensing, low memory footprint(2)	low memory footprint(2), ultra-low power mode	low memory footprint(2)	low memory footprint(2), ultra-low power mode	multi-target detection, ultra-low power mode	multi-target detection	multi-target detection	multi-target detection, improved performance in ambient light
Maximum update rate:(1)	~150 Hz	100 Hz	50 Hz	100 Hz	125 Hz	60 Hz
Operating voltage range:	2.6 V to 5.5 V					2.5 V to 5.5 V		3.2 V to 5.5 V
Regulator voltage:	2.8 V					3.3 V		1.8 V and 3.3 V
Typical active-ranging supply current:	25 mA	25 mA	20 mA	20 mA	20 mA	100 mA
Peak supply current:	40 mA					150 mA
Interface:	I�C							I�C, SPI
Dimensions:	0.5? � 0.7?							0.5? � 0.9?
1-piece price:	$17.57	$16.38	$18.99	$24.42	$20.77	$28.49	$28.49	$31.71
1 Effective range and update rate depend on configuration, target, and environment. 2 Suitable for use with typical 8-bit MCUs.

Most of these carriers have the same physical dimensions (0.5? � 0.7?) and work in 3.3 – 5 V systems (thanks to their integrated linear regulators and level-shifters), and they can all be controlled through an I�C interface. However, they have different APIs and memory requirements, so software will generally need to be rewritten when switching between sensors in an application, and versions with higher memory requirements are generally not suitable for use with typical 8-bit microcontrollers.
