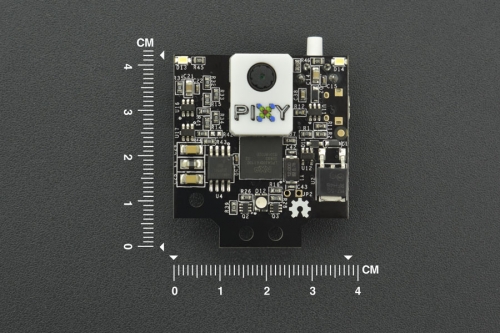

Pixy 2 CMUcam5 Image Sensor (Robot Vision)

Introduction

Note: Please don't tighten the camera, or the chip will be damaged

If you need an AI Machine Vision Sensor with more functions, we recommend Gravity: HUSKYLENS.

Pixy2 is smaller, faster and more capable than the original Pixy. Like its predecessor, Pixy2 can learn to detect objects that you teach it, just by pressing a button. Additionally, Pixy2 has new algorithms that detect and track lines for use with line-following robots. The new algorithms can detect intersections and “road signs” as well. The road signs can tell your robot what to do, such as turn left, turn right, slow down, etc. And Pixy2 does all of this at 60 frames-per-second, so your robot can be fast, too.

Pixy 2 Machine Vision Camera Review with Arduino

Connect directly to Arduino or Raspberry Pi

No need to futz around with tiny wires — Pixy2 comes with a special cable to plug directly into an Arduino and a USB cable to plug into a Raspberry Pi, so you can get started quickly. No Arduino or Raspberry Pi? No problem! Pixy2 has several interfaces (SPI, I2C, UART, and USB) and simple communications, so you get your chosen controller talking to Pixy2 in short order.

Simplify your programming

To get you up and running as fast as possible, we offer software libraries for Arduino and Raspberry Pi. Pixy2 makes your programs simpler by only sending the data you’re looking for. For example, if you teach Pixy2 a purple object, you will only receive data (X-Y coordinates, size, and unique ID) about the purple objects that Pixy2 detects.

AI Machine Vision Sensor Selection Guide

	Pixy2	Gravity: HuskyLens
Processor	NXP LPC4330, Dual Core 204 MHz	Kendryte K210, Dual Core 400MHz
Image Sensor	MT9M114, 1.26 Megapixel	OV2640, 2.0 Megapixel
Built-in Algorithm	Color Recognition Line Tracking Barcode Recognition	Face Recognition Object Tracking Object Recognition Color Recognition Line Tracking Tag Recognition Object Classification
Communication Interface	UART, SPI, I2C, USB, digital, Analog	UART, I2C, USB
Onboard Screen	None	2.0” IPS
Compatible Controllers	Arduino, micro: bit, Raspberry Pi	Arduino, micro: bit, Raspberry Pi
Dimensions	1.65”x 1.5”	2.05” x 1.75”
Price	$59.95Â	$44.90Â

Features

Pixy2 detects lines, intersections and small barcodes, intended for line-following robots

Improved framerate – 60 frames-per-second

Tracking algorithms have been added to color-based object detection

Improved and simplified libraries for Arduino, Raspberry Pi and other controllers

Integrated light source

Specification

Lens type: Standard M12

Processor: NXP LPC4330, 204 MHz, dual core

Image sensor: Aptina MT9M114, 1296×976 resolution with integrated image flow processor

Lens field-of-view: 60 degrees horizontal, 40 degrees vertical

Power consumption: 140 mA typical

Power input: USB input (5V) or unregulated input (6V to 10V)

RAM: 264K bytes

Flash: 2M bytes

Available data outputs: UART serial, SPI, I2C, USB, digital, analog

Dimensions:1.5” x 1.65” x 0.6”

Weight: 10 grams

Integrated light source, approximately 20 lumens

Shipping List

Pixy 2 CMUcam5 Image Sensor x1

FC-10P to FC-6P Cable x1

Screw Package x1

Documents

Pixy2 Wiki

PixyMon v2 Software (Windows, Mac, Linux, Arduino)
